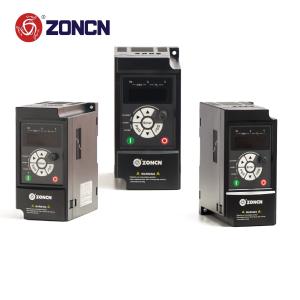

220v 380v 2.2kw 3.7kw 5.5kw 7.5kw Variable Frequency Drive 3hp 5hp 7hp 10hp VFD Inverter

  • 1
  • 2
  • 3

Brand Name : ZONCN

Model Number : T9400-2R2G

Certification : CE, KC

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T, Paypal

Supply Ability : 100,000 pcs/month

Delivery Time : 7-30 days

Packaging Details : inside: box; outside: carton

Type : AC frequency inverter

Brand : ZONCN

Origin : Made in China

Series : T9000

Voltage : 220V/380V/440V/480V

Power : 2.2kw/3.7kw/5.5kw/7.5kw

Control mode : V/F+open/close loop vector control

Packing : brown carton/wooden carton

Contact Now

220v 380v 2.2kw 3.7kw 5.5kw 7.5kw Variable Frequency Drive 3hp 5hp 7hp 10hp VFD Inverter

ZONCN T9000 Inverter Model

ZONCN T9000 Inverter Model Input Voltage (V) Rated output power(kW) Rated input current(A) Rated output current(A) Motor Power (KW)
T9200-0R4G 1PH AC 220V±15% 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
T9400-0R4G 3PH AC 380V±15% 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62/76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55
T9400-55G 55 113 110 55
T9400-75G/90P 75/90 157/180 150/176 75/90
T9400-90G/110P 90/110 180/214 176/210 90/110
T9400-110G/132P 110/132 214/256 210/253 110/132
★Please contact us directly for inverter powers above 110kw

Nameplate Description

220v 380v 2.2kw 3.7kw 5.5kw 7.5kw Variable Frequency Drive 3hp 5hp 7hp 10hp VFD Inverter

Inverter Specification

Item Description
Basic function Control Mode VF control
Sensorless flux vector control(SVC)
Close-loop vector control(FVC)(Above 3.7kW)
Maximum frequency 0~600Hz
Carrier frequency 0.5kHZ——8kHz
The carrier frequency is automatically adjusted based on the load features
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torque G Type:0.5Hz/150%(SVC)
P Type:0.5Hz/100%
Speed range 1:100 (SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ;
Customized boost: 0.1%~30.0%
V/F Curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation 2 types: complete separation; half separation
Ramp Mode Straight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC braking DC braking frequency:0.00Hz~Maximum frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG control JOG frequency range:0.00Hz~50.00Hz
JOG acceleration/deceleration time: 0.0s~6500.0s.
Simple PLC,Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage
Overvoltage/overcurrent stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
implemented in the FVC mode.
  Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card


FAQ

Q1: T9000 series inverter can be used for general purpose in industrial applications?

A: Yes, T9000 inverter is ZONCN's general purpose series, it can be used in most of the industrial applications. Besides, this series of inverter has 24V power supply terminal, analog input and support profinet communication.

Q2. What is your payment terms?

A: T/T, 100% in advance.

Q3. What is your shipping method?

A: The inverters can be ship by sea/by air/by Express.

Q4. Does your inverters have warranty?

A: Sure, all our inverters have 18 months of warranty time.
